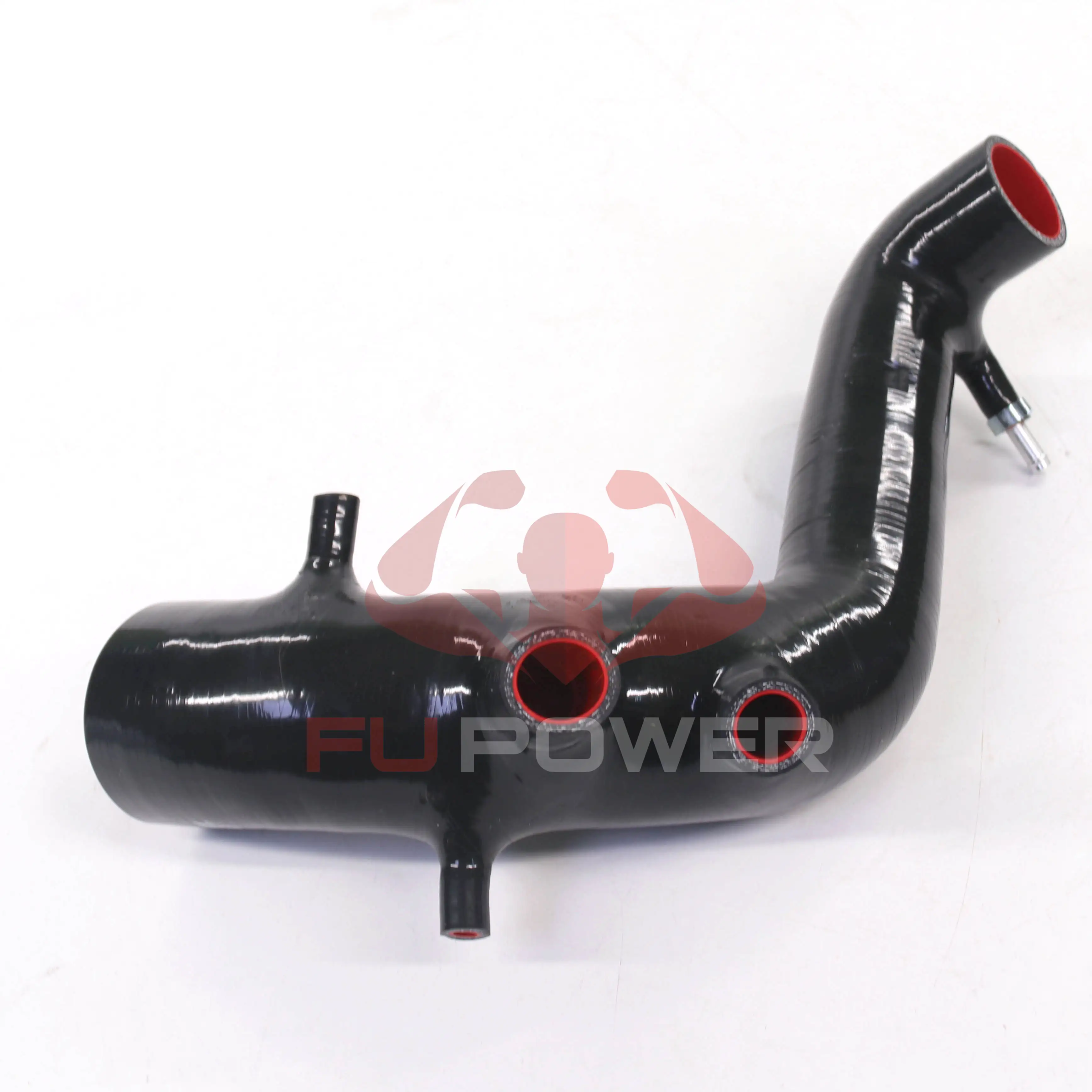

Performance Silicone rubber coolant Air Intake Induction turbo inlet Hose Pipe For VW Golf MK4 1.8T GTi
Place of Origin: China
Minimum order quantity: 50
Material Science: Silicone
Packing: Carton Packing
Delivery time: 50
Model: For VW Golf MK4 1.8T GTi
Type: SILICONE HOSE
Product display
Product description
High performance silicone hoses are made with high-grade 4-Ply silicone A dual layer that consists of heat resistant fibers,which guaranties a increased pressure tolerance, resistance to UV,water,oil/fuel,heat reductions and a life time expectancy of the hoses.
Our specific combination of silicone compounds and fabrics to deliver the required performance,reliability stength and flexibility required,improves the flow of engine cooling system and upgrades the performance.
Min temperature: -60º C/-140º F.
Max temperature: 220º C/428º F.
work pressure: 0.3 to 0.9 MPA.
Bursting Pressure: 2MPA.
Thickness: 5MM/ 4-Ply
Size tolerance: +/- 0.5MM.
Applications:
1999 ~ 2005 for Volkswagen Golf MK4 1.8T
1999 ~ 2005 for Volkswagen Jetta MK4 1.8T
1999 ~ 2005 for Volkswagen Beetle MK4 1.8T
1999 ~ 2005 for Audi TT 1.8T
Seat Leon 1.8T 20V for AWU/AWP/AWD/AWW
for VW Golf MK4 1.8T / Bora 1.8T /Bettle 1.8T
for VW Polo 1.8T and Ibiza FR MK4
Skoda Oktavia 1.8T
Product details
Ehicle Fitment
BMW 1 Series
• 2015+ F20/F21 B58 M140i
BMW 2 Series
• 2017+ F22 F23 B58 M240i/iX
BMW 3 Series
• 2016-2019 F30 F31 F34 B58 340i/340iX including GT
BMW 4 Series
• 2016-2020 F32 F33 F36 B58 440i/440iX
Product parameter
|
Product Item |
Silicone/Rubber Hose |
|
Material |
100% pure silicone |
|
Color |
Different colors are available, pls mark your color requirement with your order. |
|
Working Temperature |
-76°F (-60°C) to +500°F (+260°C) |
|
Working Pressure |
0.3Mpa (43.5 PSI) to 0.9Mpa (130.5 PSI) |
|
Bursting Pressure |
2Mpa |
|
Wall Thickness |
4.5mm (customized is available) |
|
Reinforced Layer |
4ply (customized is available) |
|
Size Tolerance |
+/- 0.5mm |
|
Features |
bear high temperature and high pressure |
CUSTOMIZATION AND SOLUTIONS
If you cannot find accurately products you prefer or your need, we can custom similar products based on your specifications, drawing, samples, or ideas. we will work out it for you.
Over 15 years performance industry's experience, and our 3 facilities to make sure your products or design to be complete with unique and different finished in the market, to beat your competitors.
No2 facility silicone tubes,
Projects: air intakes, turbo boost, intercooler tubes, coolent tubes, blow off valve tubes, silicone elbows, silicone straights, silicone 90degrees, silicone 45degrees, silicone clutch tubes, and other tubes
Send us Drawing/Sample
|
Send your Sample, drawing, or use our mold or our jig |
|
|
LOGO |
Free charge to print logo |
|
Color |
black, red, blue, purple, white, yellow, camo and so on |
|
Material |
Fluoro or silicone, ss reinforcement or others |
|
Packing |
custom Neutral packaging or print your logo |
Raw/Sample/Design/Logo/Color/Packages/Materials can be customized.
